Description

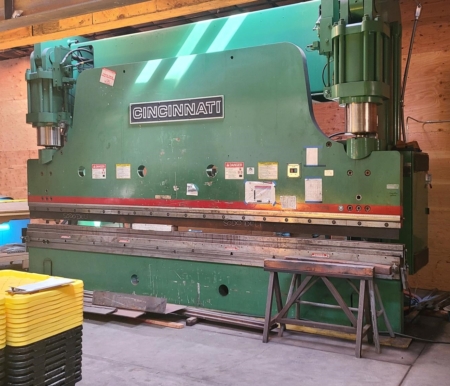

Cincinnati Proform 600 PF
Tonnage: 600
Capacity: 3/4″ x 14′ mild steel over 8″ Vee die
forming speed: 600 tons up to 30 IPM, partial up to 47 IPM, return up to 201 IPM
High apporach speed up to 214 IPM
Overall die surface: 20 ft.
Between housings: 16′ 5 .75″
Closed height: 10″
Throat: 18″
Stroke: 18″
Bed Height Above Floor: 32″
Depth Below Floor: 51″
Back Gage: X axis (40″ range) and R axis (8″ range)
Pedestal mounted industrial PC-based control, 15.1″ LCD panel color display
Three position foot switch.. Tool library, program storage. Palm button operator station w/ emergency stop.
Hydraulic speed package
Year new: 2009
Foundation drawings upon request.
