Description
For picture and specs look at the new Bravo Coil line. This is a used unit in service for only 2 years. Retirement forces sale.

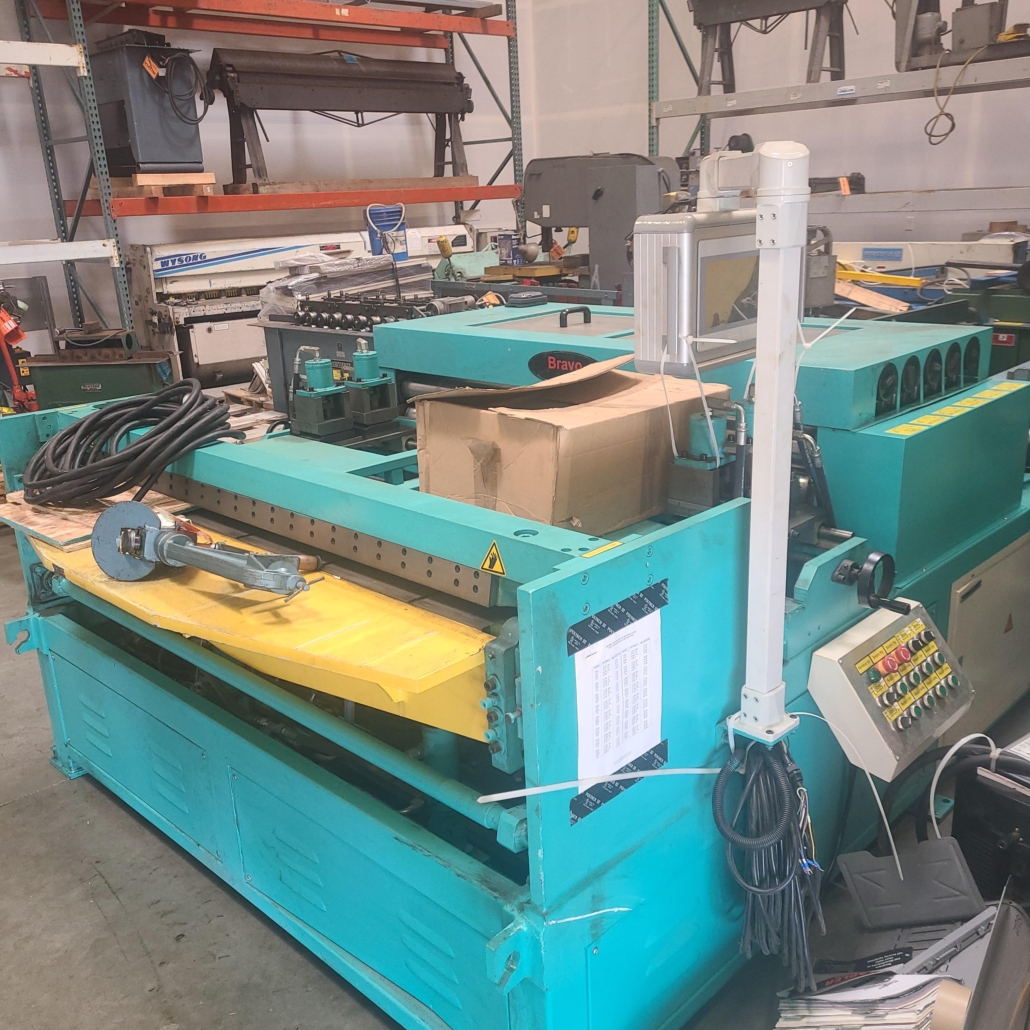

Used Brovo 6018 coil line

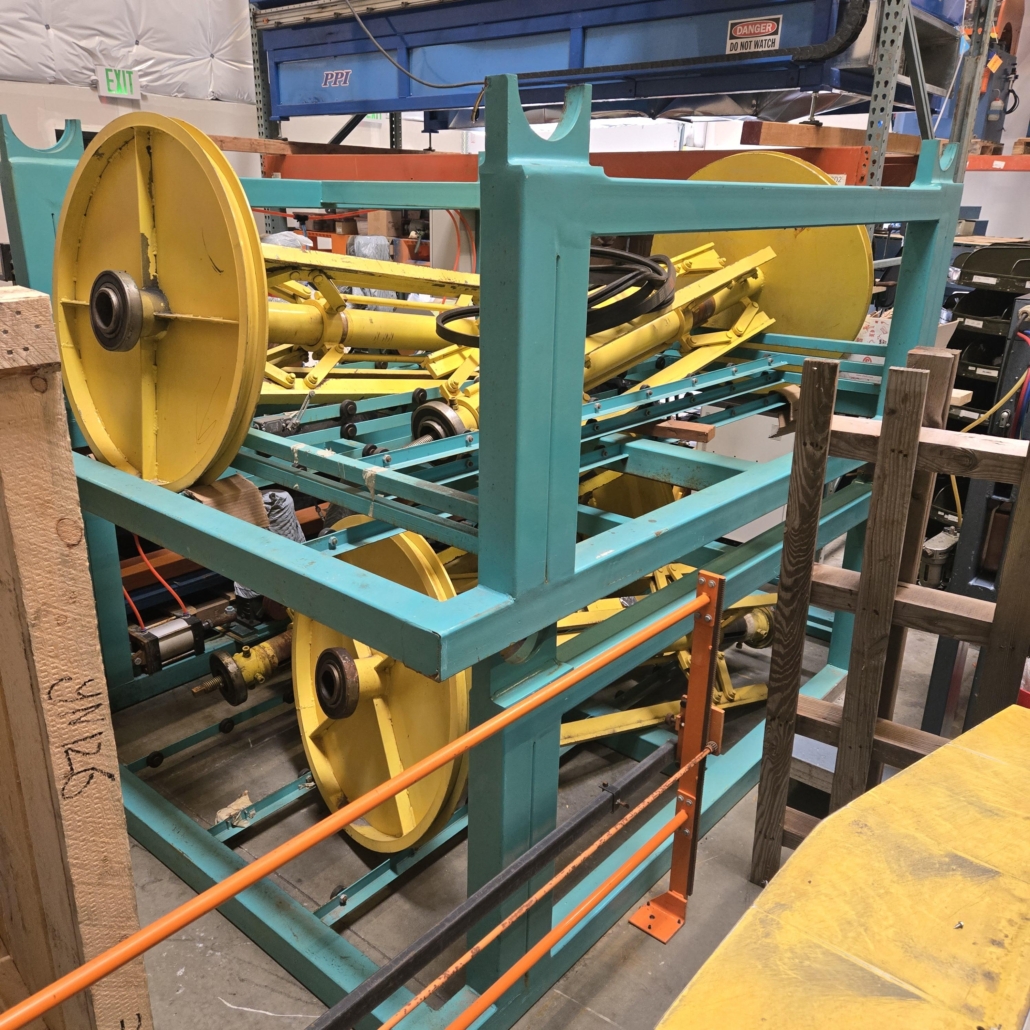

***inludes 2 additional uncoilers for a total of 4***
Features: Uncoiling, Leveling, Beading, Notching, Shearing, Breaking, Touchscreen Program, Metric & Imperial
Capacity: 26-18 Ga, 48″-60″ Coil Width
Notches for: Small & Large Pitts, S&D, TDC/TDF, Button Lock, Raw
SMACNA Beading
Bending: L, U, Full Wrap & Shearing
Powered Uncoilers
Rubber feeding roll controlled by servo-motor
Leveller Station of 5 rolls (3 top & 2 bottom)
Adjustable Depth Bead Rolls
Measuring Rolls connected to Encoder
* * * English & Spanish Program * * *
Specifications:
Capacity: 60″ x 18 Gauge Galvanized
Electrics: 220/3/60 (Standard)
Max duct length: 13′
Footprint: 7′ x 28′
Max Coil Weight: 12,000#
Max Coil Width: 60″
Min duct width: 8″
Max Thickness of Metal: 18-gauge mild steel
Line Speed: Approx. 0-30 fpm
