Description

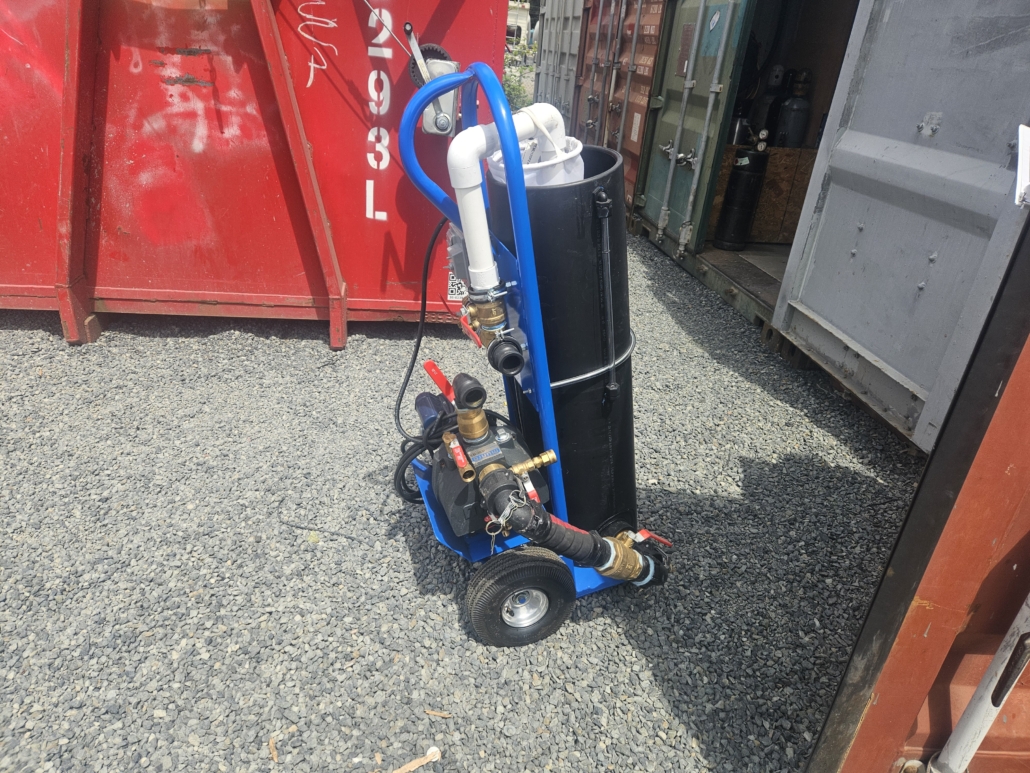

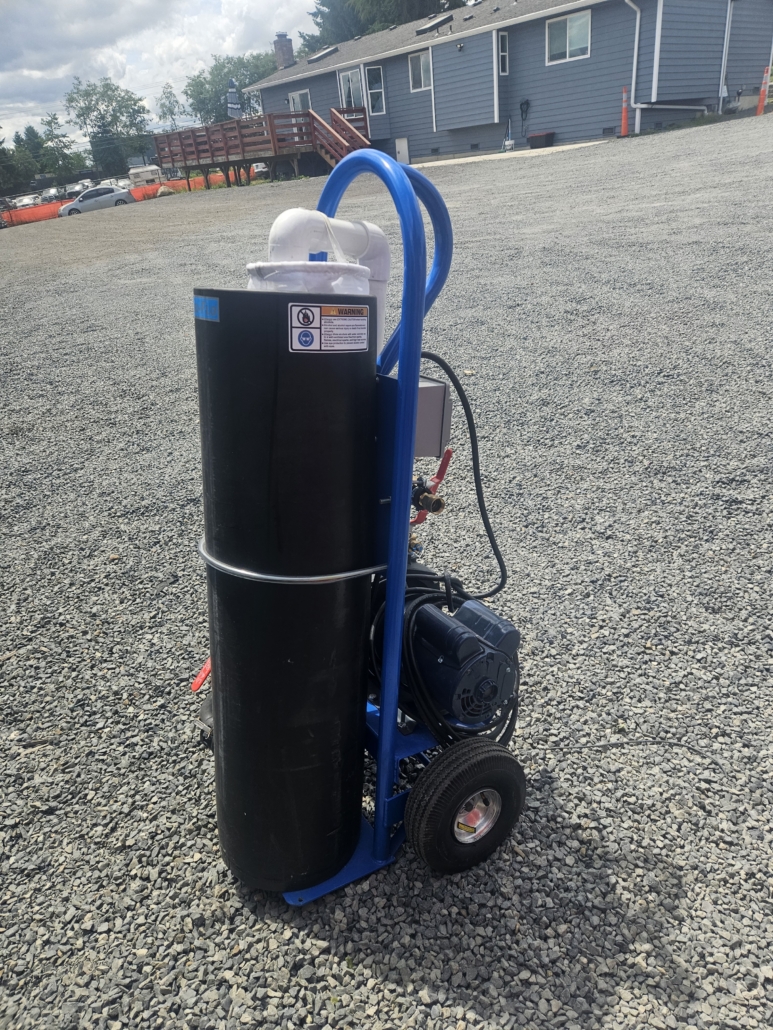

The Geo-Flo Flush Cart is the professional’s choice to purge air and flush debris from residential and light commercial geothermal ground loops. The Flush Cart includes all the important features required to safely slush and purge the loop including power flushing, power draining, pump and dump, and debris filtering. Its compact design utilizes standard components which allows for easy field service. The 1.5 HP self-priming 115V pump is mounted above the cart’s axle, providing a well balanced system that is easy to maneuver.
- Manufactured by Geo-Flo Products Corporation
- ETL Safety Listing (Listed to UL Standard 778)
- Tank: 10″ Diameter, 13 gallon capacity
- Hand Truck: P-Handle, powder-coated steel
- Tires: 10″ Pneumatic
- Wiring: 20 ft 12/3 SJO cord with 15 Amp male plug
- Power Switch: Weatherproof switch box with 20 Amp GFCI protected switch
- Filter: Removable/reusable, 5.5″ Dia x 31″ long, 100 micron, 90 GPM max.
- Power Flush Valve: Brass, 2″ Full Port
- Dead-Head Valve: Brass, 1.5″ Full Port
- Hose Connections: 1.5″ CAM male quick-connect
- Power Drain Valve: Brass, 1/2″ Full port with garden hose swivel connection
- Fill Valve: Brass, 1/2″ Full port with garden hose swivel connection
- Pump Case Drain Port Valves: (2) 1/4″, Brass
- PT Port: Located on discharge side of pump; allows pressure measurement
- Pump/Tank Connection: 2″ flexible wire-reinforced hose
- Sight Tube: Flexible with O-ring; allows fluid level monitoring during dead-head
- Hoses: (2) 1.5″ ID, Flexible PVC hose with rigid PVC helix with 1.5″ CAM female quick connect fittings (pump side) and 1″ CAM fittings (loop side)
